Virtual DOM

The Problem

DOM manipulation is the heart of the modern, interactive web. Unfortunately, it is also a lot slower than most JavaScript operations.

This slowness is made worse by the fact that most JavaScript frameworks update the DOM much more than they have to.

As an example, let’s say that you have a list that contains ten items. You check off the first item. Most JavaScript frameworks would rebuild the entire list. That’s ten times more work than necessary! Only one item changed, but the remaining nine get rebuilt exactly how they were before.

Rebuilding a list is no big deal to a web browser, but modern websites can use huge amounts of DOM manipulation. Inefficient updating has become a serious problem.

To address this problem, the people at React popularized something called the virtual DOM.

The Virtual DOM

In React, for every DOM object, there is a corresponding “virtual DOM object.” A virtual DOM object is a representation of a DOM object, like a lightweight copy.

A virtual DOM object has the same properties as a real DOM object, but it lacks the real thing’s power to directly change what’s on the screen.

Manipulating the DOM is slow. Manipulating the virtual DOM is much faster, because nothing gets drawn onscreen. Think of manipulating the virtual DOM as editing a blueprint, as opposed to moving rooms in an actual house.

How it helps

When you render a JSX element, every single virtual DOM object gets updated.

This sounds incredibly inefficient, but the cost is insignificant because the virtual DOM can update so quickly.

Once the virtual DOM has updated, then React compares the virtual DOM with a virtual DOM snapshot that was taken right before the update.

By comparing the new virtual DOM with a pre-update version, React figures out exactly which virtual DOM objects have changed. This process is called “diffing.”

Once React knows which virtual DOM objects have changed, then React updates those objects, and only those objects, on the real DOM. In our example from earlier, React would be smart enough to rebuild your one checked-off list-item, and leave the rest of your list alone.

This makes a big difference! React can update only the necessary parts of the DOM. React’s reputation for performance comes largely from this innovation.

In summary, here’s what happens when you try to update the DOM in React:

  1. The entire virtual DOM gets updated.

  2. The virtual DOM gets compared to what it looked like before you updated it. React figures out which objects have changed.

  3. The changed objects, and the changed objects only, get updated on the real DOM.

  4. Changes on the real DOM cause the screen to change.

Want to know More

But what does “virtual DOM” mean exactly?

DOM

Just to get things straight - DOM stands for Document Object Model and is an abstraction of a structured text. For web developers, this text is an HTML code, and the DOM is simply called HTML DOM. Elements of HTML become nodes in the DOM.

So, while HTML is a text, the DOM is an in-memory representation of this text.

Compare it to a process being an instance of a program. You can have multiple processes of the same one program, just like you can have multiple DOMs of the same HTML (e.g. the same page loaded on many tabs).

The HTML DOM provides an interface (API) to traverse and modify the nodes. It contains methods like getElementById or removeChild. We usually use JavaScript language to work with the DOM, because… Well, nobody knows why :).

So, whenever we want to dynamicly change the content of the web page, we modify the DOM:

var item = document.getElementById("myLI");
item.parentNode.removeChild(item);

document is an abstraction of the root node, while getElementById, parentNode and removeChild are methods from HTML DOM API.

Issues

The HTML DOM is always tree-structured - which is allowed by the structure of HTML document. This is cool because we can traverse trees fairly easily. Unfortunately, easily doesn’t mean quickly here.

The DOM trees are huge nowadays. Since we are more and more pushed towards dynamic web apps (Single Page Applications - SPAs), we need to modify the DOM tree incessantly and a lot. And this is a real performance and development pain.

BTW. I myself managed to create a web page with a source of 5GB+. It wasn’t even that hard.

Consider a DOM made of thousands of divs. Remember, we are modern web developers, our app is very SPA! We have lots of methods that handle events - clicks, submits, type-ins… A typical jQuery-like event handler looks like this:

  • find every node interested on an event

  • update it if necessary

Which has two problems:

  1. It’s hard to manage. Imagine that you have to tweak an event handler. If you lost the context, you have to dive really deep into the code to even know what’s going on. Both time-consuming and bug-risky.

  2. It’s inefficient. Do we really need to do all this findings manually? Maybe we can be smarter and tell in advance which nodes are to-be-updated?

Once again, React comes with a helping hand. The solution to problem 1 is declarativeness. Instead of low-level techniques like traversing the DOM tree manually, you simple declare how a component should look like. React does the low-level job for you - the HTML DOM API methods are called under the hood. React doesn’t want you to worry about it - eventually, the component will look like it should.

But this doesn’t solve the performance issue. And this is exactly where the Virtual DOM comes into action.

Virtual DOM

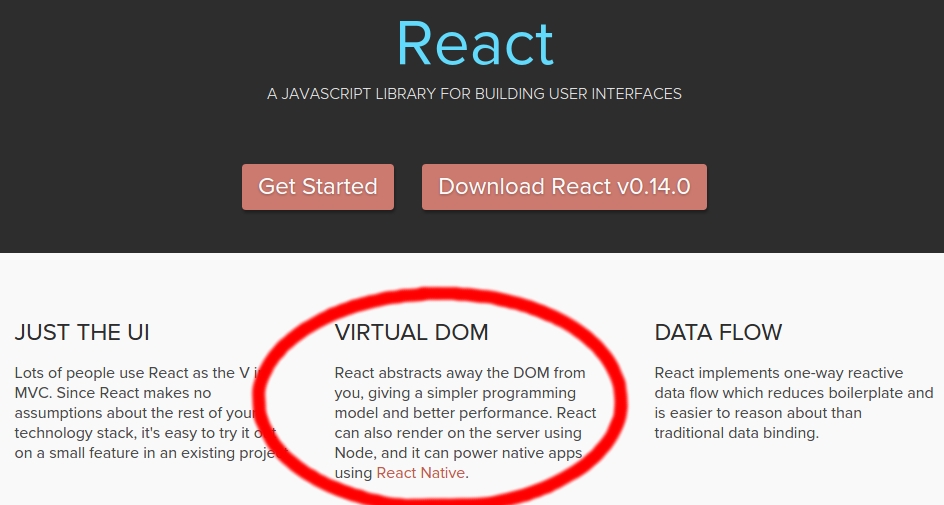

First of all - the Virtual DOM was not invented by React, but React uses it and provides it for free.

The Virtual DOM is an abstraction of the HTML DOM. It is lightweight and detached from the browser-specific implementation details. Since the DOM itself was already an abstraction, the virtual DOM is, in fact, an abstraction of an abstraction.

Perhaps it’s better to think of the virtual DOM as React’s local and simplified copy of the HTML DOM. It allows React to do its computations within this abstract world and skip the “real” DOM operations, often slow and browser-specific.

There’s no big difference between the “regular” DOM and the virtual DOM. This is why the JSX parts of the React code can look almost like pure HTML:

var CommentBox = React.createClass({
  render: function() {
    return (
      <div className="commentBox">
        Hello, world! I am a CommentBox.
      </div>
    );
  }
});

In most cases, when you have an HTML code and you want to make it a static React component, all you have to do is:

  1. Return the HTML code in render

  2. Replace class attribute name to className - because class is a reserved word in JavaScript.

There are more, rather minor, differences between the DOMs:

  • Three attributes of the virtual DOM that don’t appear in “real” DOM - key, ref and dangerouslySetInnerHTML. See more.

  • React-ish virtual DOM introduced a few more constraints.

ReactElement vs ReactComponent

When talking about the virtual DOM, it’s important to see the difference between these two.

ReactElement

This is the primary type in React. React docs say:

A ReactElement is a light, stateless, immutable, virtual representation of a DOM Element.

ReactElements lives in the virtual DOM. They make the basic nodes here. Their immutability makes them easy and fast to compare and update. This is the reason of great React performance.

What can be a ReactElement? Almost every HTML tag - div, table, strong… If you wish, see the whole list.

Once defined, ReactElements can be render into the “real” DOM. This is the moment when React ceases to control the elements. They become slow, boring DOM nodes:

var root = React.createElement('div');
ReactDOM.render(root, document.getElementById('example'));
// If you are surprised by the fact that `render`
// comes from `ReactDOM` package, see the Post Scriptum.

JSX compiles HTML tags to ReactElements. So this is equivalent to the above:

var root = <div />;
ReactDOM.render(root, document.getElementById('example'));

Once again - ReactElements are the basic items in React-ish virtual DOM. However, they are stateless, therefore don’t seem to be very helpful for us, the programmers. We would rather work on the class-like pieces of HTML, with kind-of-variables and kind-of-constants - don’t we? And here we come to…

ReactComponent

What differs ReactComponent from ReactElement is - ReactComponents are stateful.

We usually use React.createClass method to define one:

var CommentBox = React.createClass({
  render: function() {
    return (
      <div className="commentBox">
        Hello, world! I am a CommentBox.
      </div>
    );
  }
});

Your HTML-like blocks returned from render method can have a state. And the best thing is (I bet you already know it, this is why React is so cool!) - whenever the state changes, the component is rerendered:

var Timer = React.createClass({
  getInitialState: function() {
    return {secondsElapsed: 0};
  },
  tick: function() {
    this.setState({secondsElapsed: this.state.secondsElapsed + 1});
  },
  componentDidMount: function() {
    this.interval = setInterval(this.tick, 1000);
  },
  componentWillUnmount: function() {
    clearInterval(this.interval);
  },
  render: function() {
    return (
      <div>Seconds Elapsed: {this.state.secondsElapsed}</div>
    );
  }
});

ReactComponents turned out to be a great tool for designing dynamic HTML. They don’t have the access to the virtual DOM, but they can be easily converted to ReactElements:

var element = React.createElement(MyComponent);
// or equivalently, with JSX
var element = <MyComponent />;

What makes the difference?

ReactComponents are great, we would love to have plenty of them since they are easy to manage. But they have no access to the virtual DOM - and we would like to do as much as possible there.

Whenever a ReactComponent is changing the state, we want to make as little changes to the “real” DOM as possible. So this is how React deals with it. The ReactComponent is converted to the ReactElement. Now the ReactElement can be inserted to the virtual DOM, compared and updated fast and easily. How exactly - well, that’s the job of the diff algorithm. The point is - it’s done faster than it would be in the “regular” DOM.

When React knows the diff - it’s converted to the low-level (HTML DOM) code, which is executed in the DOM. This code is optimised per browser.
